Supporting operators to avoid collisions with unnoticed obstacles for achieving safe operation

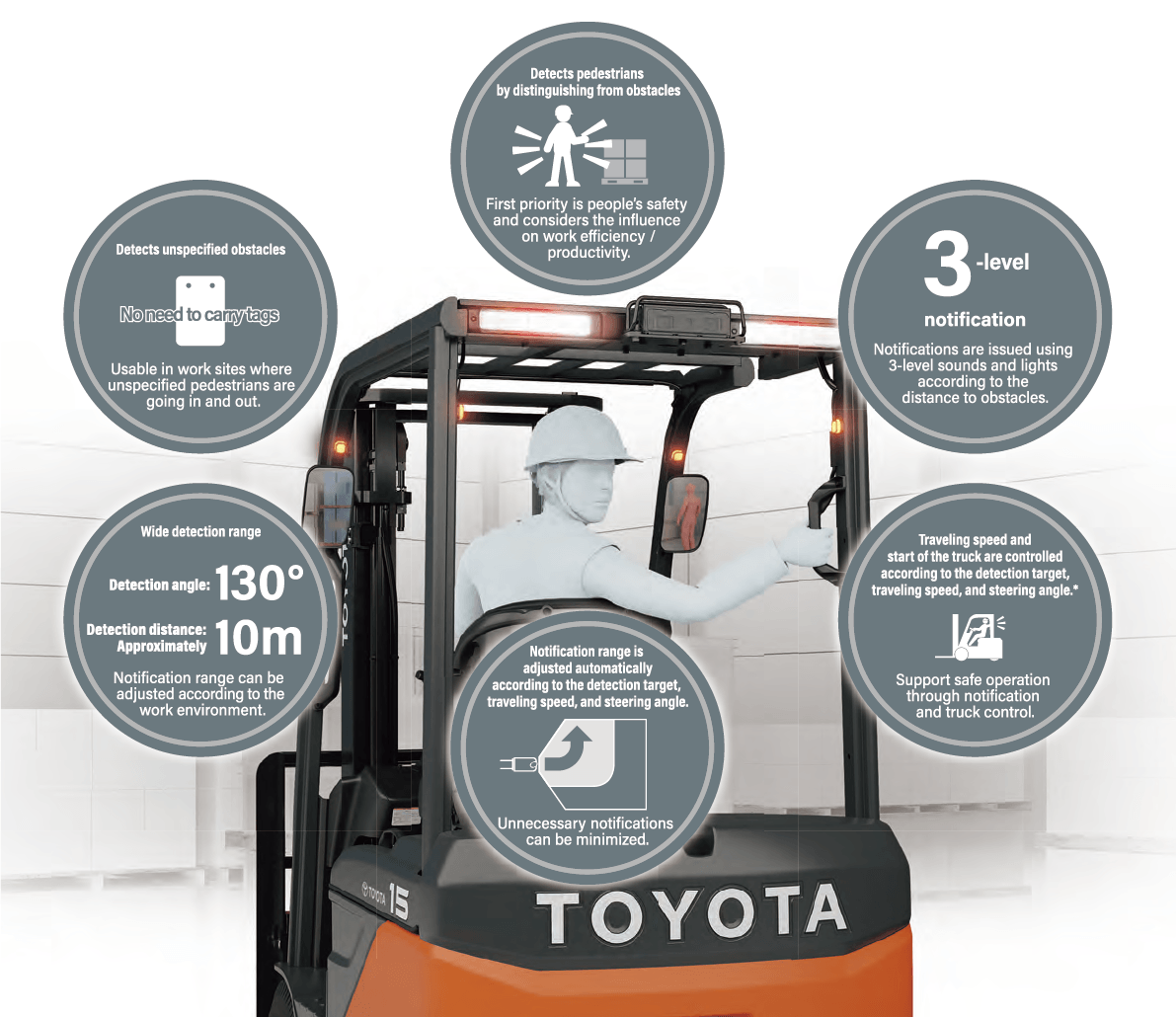

The stereo camera, an exclusive forklift design, detects pedestrians by distinguishing from unspecified obstacles in the detection range.

Linked with the truck status, the system supports safe operation by not only notifying the operator with a warning buzzer and warning lamps but also controlling the traveling speed and start of the truck.

The stereo camera, an exclusive forklift design, detects pedestrians by distinguishing from unspecified obstacles in the detection range.

First priority is people's safety and considers the influence on work efficiency/productivity. The system does not require carrying tags by workers and contributes to the safety of the work environment where unspecified pedestrians are going in and out.

TRAVELING SPEED CONTROL

The 3-level notification range is set. The notification level varies and is controlled according to the detection target, traveling speed, and steering angle.

START CONTROL

The operator is notified about obstacles behind the forklift before starting to move. If the operator attempts to reverse with an obstacle detected in the detection range, truck movement will be limited for safe operation.

The system can detect obstacles in a wide range with a horizontal detection angle of 130°, maximum detection distance is approximately 10m and width is approximately 5.5 m for both right and left sides.

With automatic adjustment of the notification range according to the detection target, traveling speed, and steering angle, maintain the efficiency of operation.

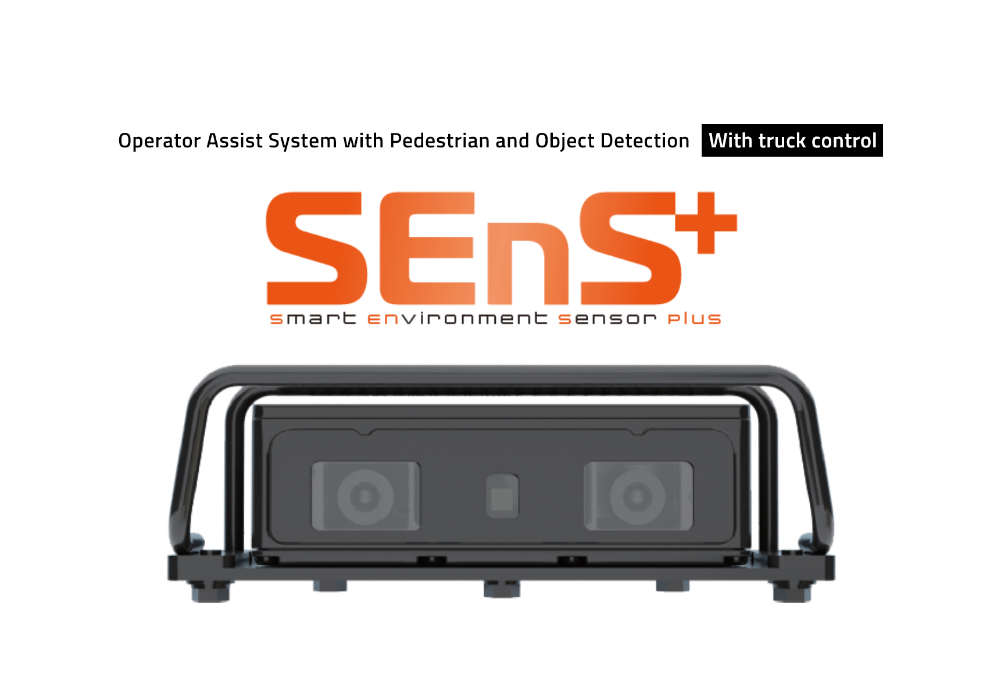

STEREO CAMERA AND BRACKET

A dedicated bracket secures and protects the camera. IP67 water-proof performance supports outdoor use.

WARNING BUZZER

Installed to the position where the operator can
catch the sound easily.

WARNING LAMPS

Installed at 4 positions of the truck so that operator can easily identify the warning.

SEnS+ is available for:

Please note that all our products are subject to local availability and that exception in availability and differences in installation may apply.

• The system is an Operator Assist system with Pedestrian Detection that has been developed based on The premise of safe operation by the operator.

• The system controls deceleration by shutting down The power, not by The brake. Also, it is not The function to automatically stop The truck.

• There are limitations to The recognition performance of The system.

• It is important that an Operator should not over-rely on The system and an Operator is solely responsible for monitoring their surrounding conditions and needs to prioritize safe operation.

The date on this website was determined based on our standard testing condition. Operating performance may vary depending on the actual specifications and condition of the vehicle, as well as the conditions of the operating area.

Due to photography and printing, the color of the actual vehicle may vary from this website. Some photos have been computer-enhanced. Availability and specifications are determined by the market and are subject to change without notice.

Safe forklift operation is achieved by proper operator training and proper worksite rules. Please consult your Toyota representative regarding forklift selection and operator training. Please consult your Toyota representative for details.
